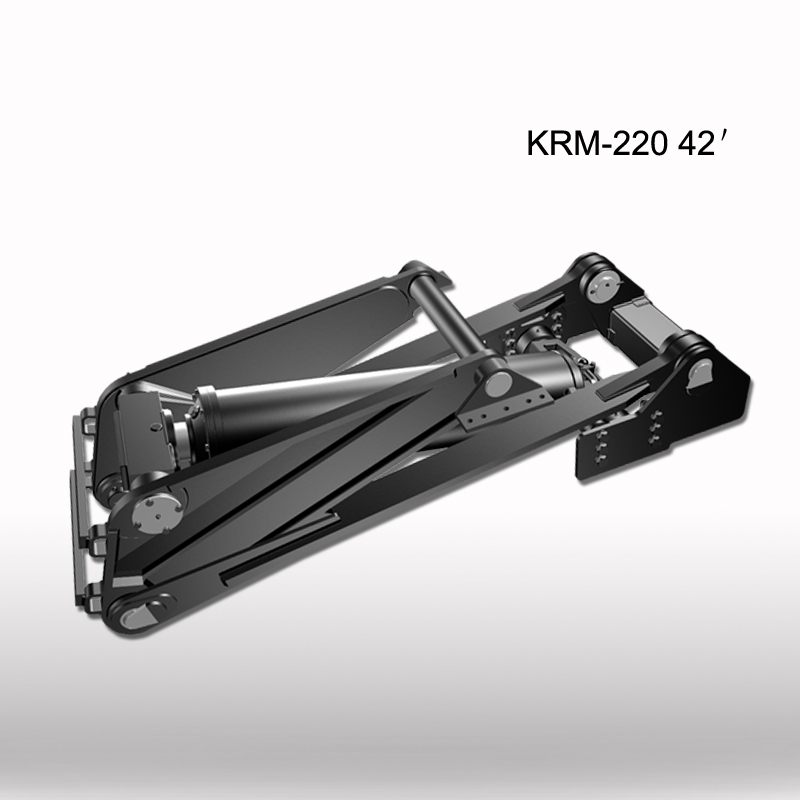

Hoist Machanism Dimensions and Weight
| Hoist Cylinder KRM 220 42’ | ||||
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1870 | 620 | 500 | 1226 | 581 |
Hoist Cylinder and Pump Conbination Specificaion
| Working Pressure(MPa)/kgf/cm²) | 9.8/100 | Min.Close Distance(mm) | 1197 |
| Inner Diameter(mm) | 220 | Piston Rod Diameter(mm) | 100 |
| Stroke(mm) | 865 | Max. Pressure(MPa)/kgf/cm²) | 20.6/210 |
| Gear Pump | KP-1505A |
Weight(kg) |
38 |
Hoist Mounting and Maximum Lifting Capacity
|
Recommen ded Truck G.W.(kg) |
Body Length (mm) |
Rear Overhang Length (mm) |
Distance between Load Center and Hinge(mm) | Distance between trunnion and Hinge(mm) |
Rated Lifting Capacity (kg) |
Designed Max.Lifting Capacity(kg) |
| 35000 | 6000 | 1000 | 2000 | 2630 | 25000-45000 | 75900 |
Our company has many years of hydraulic cylinder r & D production capacity, and continue to develop related products and services.
