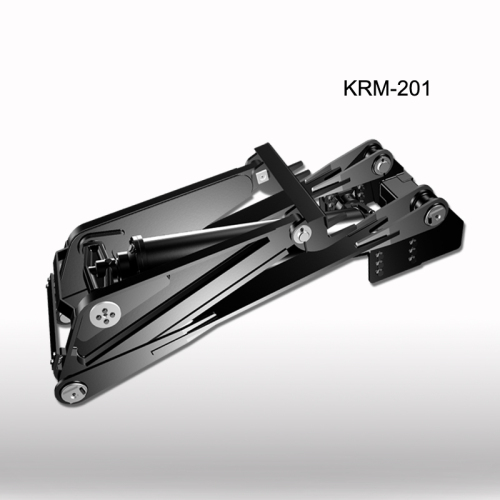

KRM201 Series Hydraulic Cylinder

Item No.: SJ0007
KRM series hydraulic cylinder can be widely used in various types of dump truck.KRM hydraulic cylinder lifting system's structure is mature and stable.
$0.00
/ Pieces
Description Review
Description



Hoist Machanism Dimensions and Weight

Hoist Cylinder KRM 201
Length(mm) Width(mm) Height(mm) Min.Closed Length(mm) Weight(kg)

1886

590 476 1275 515



Hoist Cylinder and Pump Conbination Specificaion

Working Pressure(MPa)/kgf/cm²) 10.3/105 Min.Close Distance(mm) 1211
Inner Diameter(mm) 200 Piston Rod Diameter(mm) 100
Stroke(mm) 878 Max. Pressure(MPa)/kgf/cm²) 20.6/210
Gear Pump KP-1405A Weight(kg) 37



Hoist Mounting and Maximum Lifting Capacity

Recommen ded Truck G.W. (kg)

Body Length

(mm)

Rear Overhang Length

(mm)

Distance between Load Center and Hinge(mm) Distance between trunnion and Hinge(mm)

Rated Lifting Capacity

(kg)

Designed Max.Lifting Capacity (kg)

25000-32000 6000 1000 2000 2630 15000-30000 50200
